Replacement Keyboard – Manufacturer & Keycap Compatibility Guide

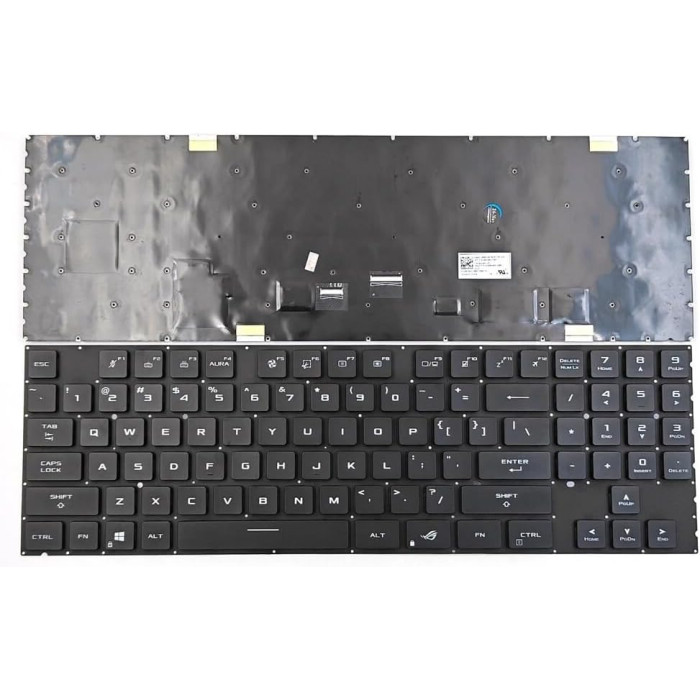

Asus ROG Zephyrus S17 GX703HR GX703HS GX703BE backlit US keyboard (Model: GX703) is a replacement keyboard designed for laptop systems.
Understanding the original manufacturer of your keyboard is crucial when you need to replace individual keycaps or if you care about the typing feel.
Technical Specifications:
- Part Number: GX703
- SKU: LT-10028341
- Backlit: backlit
- Product Status: Brand New
- Warranty: 90‑day replacement
Compatible Systems (reference):
Asus ROG Zephyrus S17 GX703 Series
Asus ROG Zephyrus S17 GX703H Series
Asus ROG Zephyrus S17 GX703HM Series
Asus ROG Zephyrus S17 GX703HM-KF001R
Asus ROG Zephyrus S17 GX703HR Series
Asus ROG Zephyrus S17 GX703HR-KF051R
Asus ROG Zephyrus S17 GX703HS Series
Asus ROG Zephyrus S17 GX703HS-KF004R
Common Keyboard Manufacturers & Their Key Scissors:
- Chicony – one of the largest suppliers, found in many Dell, HP, and Lenovo laptops. Uses a distinct scissor design.
- Sunrex – common in Acer, Asus, and some HP models. Their scissor mechanism has a unique hinge shape.
- Darfon – often used in Dell and Apple keyboards. Known for a particular scissor pivot design.
- Alps – older laptops, but still found in some business models. Their scissor mechanism is taller.
- Lite-On – used in many gaming laptops, often paired with RGB backlighting.
- Primax – common in low‑cost laptops, simple scissor design.
- NMB (Minebea) – premium keyboards, often found in high‑end business laptops like older ThinkPads.
Keycap Compatibility – Critical Info!
- Keycaps from different manufacturers are NOT interchangeable – even if they look similar, the scissor hinge and mounting clips differ.
- If you are replacing the entire keyboard assembly, you don't need to worry about this – the new keyboard comes with its own keycaps already attached.
- If you are buying individual keycaps (e.g., to replace a broken key), you must order keycaps from the same manufacturer that made your original keyboard.
- How to check the manufacturer? Look for a sticker on the back of the keyboard (visible after removal) – it usually has a brand name or a manufacturer code (e.g., “CHICONY”, “SUNREX”, “DF” for Darfon, etc.).
- If you are unsure, contact us before ordering – provide a clear photo of the keycap underside (showing the scissor mechanism). We will identify the manufacturer and confirm compatibility.
Key Travel (Stroke Length) & Typing Feel:
- Key travel varies significantly between different keyboard designs and manufacturers.
- ThinkPad keyboards typically have longer key travel (1.8‑2.0 mm) – providing a deep, tactile feedback loved by typists.
- Ultra‑thin laptops (e.g., MacBook, Dell XPS) often have very short travel (1.2‑1.5 mm) – resulting in a shallow, crisp feel.
- Mechanical keyboards have even longer travel (2.0‑4.0 mm) with distinct tactile or clicky feedback, but they are not used in laptops (external only).
- Key travel is determined by the scissor mechanism design – different manufacturers and series produce different travel distances.
- When replacing a keyboard, consider if you prefer a longer, softer travel or a shorter, snappier feel. The same laptop model may have multiple keyboard variants with different travel depending on the supplier.
How to Identify Your Keyboard Manufacturer & Key Travel:
- Check the keyboard sticker (usually on the back of the keyboard or on the ribbon cable) – it often shows the brand (e.g., Chicony, Sunrex).
- Remove a keycap carefully – take a photo of the scissor mechanism and the keycap underside, then send it to us for identification.
- Search your laptop model + "keyboard manufacturer" online – many forums have discussions about which suppliers are used.
- Compare the key travel depth by gently pressing a key – longer travel feels more cushioned, shorter travel feels more shallow.
Need help identifying your keyboard? Send us a clear photo of the keyboard back sticker and a close‑up of the keycap underside (with the scissor visible). We'll confirm the manufacturer and recommend the correct parts. For custom orders, email us at email.
